Integral Blade Stabilier Salvage Diameter OD 120.7(4 3/4) Mm Length Of Fishing Neck 600(23-5/8)

Brand Name : ATO

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 10 PIECES PER MONTH

Delivery Time : 10-15 WORK DAYS

Packaging Details : WOODEN BOX

Top conn. : 6-5/8 REG

Salvage diameter OD : 165(6-1/2)

Length of fishing neck : 700(27-9/16)

Axial bandwidth : 75(2-61/64)

Contact Now

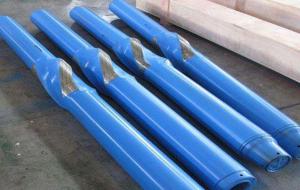

Integral blade stabilier Salvage diameter OD 120.7(4 3/4) mm Length of fishing neck 600(23-5/8)

Descriptions of Integral blade stabilier Salvage diameter OD 120.7(4 3/4) mm Length of fishing neck 600(23-5/8):

Integral blade stabilizer is an important tool in the drilling engineering to control the well deviation. It can stabilize the drilling tools in the drilling process of oil, gas and geological exploration. It can increase the bit life, drilling speed and well bore quality. There are two kinds of integral stabilizers: spiral integral blade stabilizer and straight integral blade stabilizer.

Specifications:

Work outside diameter OD mm(inch)	Salvage diameter OD mm(inch)	Top conn.	Down conn.	Hole ID	Length of fishing neck	Axial bandwidth	Take long	Remarks
98(3 7/8)	79.4(3 1/8)	NC23	NC23	31.8(1 1/4)	240(9 29/64)	34(11/32)	240(9 29/64)	Drill string type
149.2(5-7/8)	120.7(4 3/4)	NC38	NC38	50.8(2)	600(23-5/8)	50(1-31/32)	350(13 3/4)	Drill string type
			3 1/2 REG					Bottom hole type
152(6)	120.7(4 3/4)	NC38	NC38	50.8(2)	600(23-5/8)	50(1-31/32)	350(13 3/4)	Drill string type
			3 1/2 REG					Bottom hole type
215.9(8-1/2)	165(6-1/2)	NC50	NC50	57.2(2-1/4)	600(23-5/8)	60(2-3/8)	406(16)	Drill string type
			4 1/2 REG					Botom hole type
311.15(12-1/4)	203(8)	6-5/8 REG	6-5/8 REG	71.4(2-13/16)	700(27-9/16)	75(2-61/64)	406(16)	Drill string type
								Bottom hole type
444.5(17-1/2)	229(9)	7-5/8 REG	7-5/8 REG	76.5(3)	700(27-9/16)	121(4 3/4)	460(18-7/64)	Drill string type
								Bottom hole type
558.5(22)	241.3(9 1/2)	7-5/8 REG	7-5/8 REG	76.5(3)	762(30)	121(4 3/4)	508(20)	Drill string type
								Bottom hole type
660.4(26)	241.3(9 1/2)	7-5/8 REG	7-5/8 REG	76.5(3)	762(30)	121(4 3/4)	508(20)	Drill string type
								Bottom hole type
711.2(28)	241.3(9 1/2)	7-5/8 REG	7-5/8 REG	76.5(3)	762(30)	121(4 3/4)	508(20)	Drill string type
								Bottom hole type
914.4(26)	241.3(9 1/2)	7-5/8 REG	7-5/8 REG	76.5(3)	889(35)	121(4 3/4)	610(24)	Drill string type
								Bottom hole type
