Forging Carbon Steel SP Single Joint Elevator API 8A / 8C Drilling Equipment

Brand Name : ATO

Certification : API 8a/8c

Place of Origin : CHINA

MOQ : 1 sets

Price : To be negotiated

Payment Terms : L/C, T/T

Supply Ability : 100 Piece/Pieces per Day

Delivery Time : 10-15days

Packaging Details : wooden box

Machine Type : Drilling Equipment

Processing Type : Forging

Type : elevator

Material : Carbon steel

Application : drilling tools

Warranty : 1 Year, 12 MOUNTHS

Working Process : Machining

Contact Now

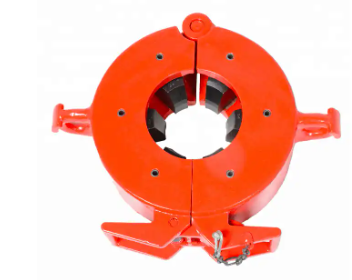

SP Single Joint Elevator

Product Application

Type SJ, type SP and type SJX single joint elevators are designed and manufactured in Accordance with API spec 8C in our company. They have a complete range of sizes. They are widely used in drilling, servicing and cementing for oil and gas well. Type SJ single joint elevators are the requisite hoisting tools for catching single pipe up and down. Type SP single joint elevators are the requisite hoisting tools for catching pipe with degree up and down.

Size		Rated Cap.
in	mm	kN
2-3/8 ~ 2-7/8	60.3-73.03	45
3-1/2 ~ 4-3/4	88.9-120.7
5 ~ 5-3/4	127-146.1
6 ~ 7-3/4	152.4-193.7
8-5/8 ~ 10-3/4	219.1-273.1
11-3/4~13-3/8	298.5-339.7
13-5/8 ~ 14	346.1-355.6
16 ~ 20	406.4-508.0
21-1/2 ~ 24-1/2	546.1-622.3	60
26 ~ 28	660.4-711.2
30 ~ 36	762.0-914.4

Model	Size	Rated Capacity
SP5°	2-3/8" ~ 10-3/4"	5 ton
SP12°	2-3/8" ~ 4-1/2"
SP18°	2-7/8" ~ 6-5/8"

Model	Size (in)	Rated Cap.(short Tons)
SJX-5	2-3/8 `~ 4-1/2	5
SJX-5	4-1/2 ~ 7
SJX-5	7 ~ 10
SJX-5	10 ~ 14

Features

The single joint elevator has a simple, reliable latch which locks simultaneously when elevator is closed. The latch lock pin, when set, prevents the latch from opening. The latch lock pin is fixed onto the elevator to prevent loss. Handles facilitate easy and ergonomic operator use.
