Brand Name : ATO
Certification : API
Place of Origin : CHINA
MOQ : 1 sets
Price : To be negotiated
Payment Terms : L/C, T/T
Supply Ability : 100 Piece/Pieces per Day
Delivery Time : 10-15days
Packaging Details : Wooden Case
Material : Carbon steel
Machine Type : Drilling Equipment
Processing Type : Casting
Application : Energy & Mining
Warranty : 1 Year

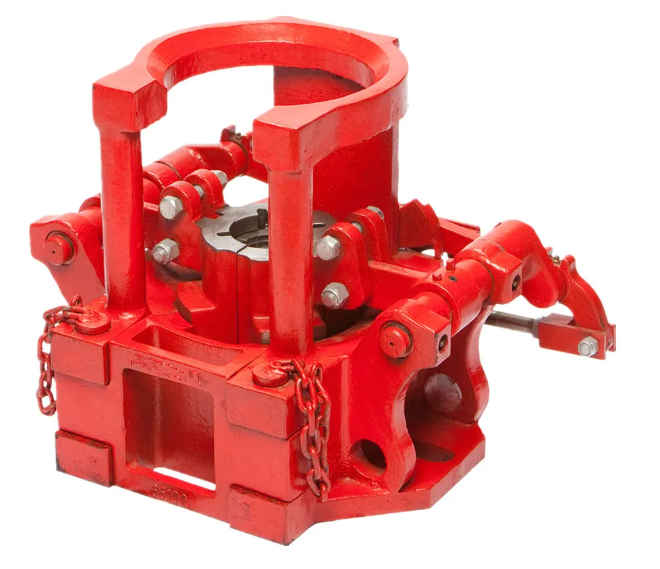

E Pneumatic Spider
Description:
Models C, CHD, HD, E and F pneumatic spiders are mainly used for gripping drill pipes, tubing, casing during oilfield drilling and workover operations. The product is designed and manufactured in accordance with API Spec 7K Specification.
Technical Specifications
Slip Body Size | Handle OD | Cylinder Working Pressure | ||
mm | in | MPa | psi | |
3 1/2 in | 60.3 | 2 3/8 | 0.6-0.9 | 87-130 |
73 | 2 7/8 | |||
88.9 | 3 1/2 | |||
5 1/2 in | 101.6 | 4 | ||
114.3 | 4 1/2 | |||
127 | 5 | |||
139.7 | 5 1/2 | |||
7 in | 158.8 | 6 1/4 | ||
168.3 | 6 5/8 | |||
177.8 | 7 | |||
7 5/8 in | 193.7 | 7 5/8 |
![]() |
Casting Type E Pneumatic Spider Drilling Handling Tools For Energy Mining Images |
