Carbon Steel Drilling Handling Tools Casting UC Casing Slips API 7K

Brand Name : ATO

Certification : API

Place of Origin : CHINA

MOQ : 1 sets

Price : To be negotiated

Payment Terms : L/C, T/T

Supply Ability : 100 Piece/Pieces per Day

Delivery Time : To be negotiated

Packaging Details : wooden box

Processing Type : Casting

Material : Carbon steel

Machine Type : Drilling Tool

Type : Drilling Rigs

Weight (KG) : 80

Contact Now

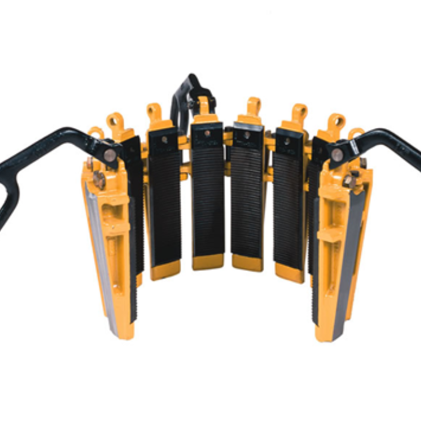

The UC casing slips

Introduction:

The UC casing slips

  The UC casing slips are designed and manufactured in API 7K and SY5049-91 slips for welling drilling. It is manufactured in a structure of multi-segment pieces with firm structure, light weight and large holding range, which is easy to fit the changing of the external diameter of the casing pipes due to wear and tear.
UC-3 Casing Slip,Oil drilling equipment, wellhead tools
Most casing strings' weight and the relatively thin pipe wall make it important that the supporting slips provide full
circumferential grip. The BAASH-ROSS Type UC-3 slips achieves this with many narrow segments. They are hinged together to wrap around the casing and exert a more uniform pressure. With each segment carrying the same load, they automatically center the casing string within the bushing or spider. The UC-3 has a 3" taper.
With changes in the number of segments and liners, it will handle strings from 16" OD to 42" OD. Liners are held in place by a liner Retainer Key and Cotter Pin.Casing Slips Type UC-3 are multi-segment slips with of 3in/ft on the diameter taper slips (except size 8.5/8”). Every segment of one slip is forced equally while working. Thus the casings could keep a better shape. They should work together with spiders and insert bowls with same taper. The slips are designed and manufactured according to API Spec 7K.

Technical Specifications

Type
8 5/8 UC-3
10 3/4 UC-3
13 3/8 UC-3
Casing OD
7
5/8
8 1/8
8 5/8
9
9 5/8
10 3/4
11 3/4
12 3/4
13 3/8
Circular Buttons
10
10
12
Total number of segments
10
10
12
Handle
3
3
4
Fit Bushing
Fit 4″ taper
Fit 3″ taper
Carbon Steel Drilling Handling Tools Casting UC Casing Slips API 7K
