Brand Name : ATO
Certification : API
Place of Origin : CHINA
MOQ : 1 sets
Price : To be negotiated
Payment Terms : L/C, T/T
Supply Ability : 100 Piece/Pieces per Day
Delivery Time : To be negotiated
Packaging Details : wooden box
Material type : Forging
Color : Red or as per request
Specification level : PSL1~PSL4
Type : choke valve
Power : Hydraulic
Working pressure : 2000PSI~15000PSI
Material class : AA,BB,CC,DD,EE,FF,HH
Performance Requirement : PR1 PR2
API standard 80-35 Hydraulic Choke Valve
JLKY80-35 Hydraulic Choke Valve
The hydraulic Throttle Valve made in Jiangsu Shuangxin Petroleum Machinery Factory is used for adjusting flow rate of manifold and other equipment. The hydraulic throttle valve controls the rate of flow by raising or lowering the position of the valve core.
Main technical parameters
Rated pressure: 2000~15000psi
Working temperature: P U
Working medium: Petroleum, natural gas
Part list
Serial NO. | Name | Quantity | Material | Remark |
1 | Valve body | 1 | 35CrMo | |
2 | Bushing | 1 | FKM | |
3 | Valve seat bushing | 1 | 35CrMo | |
4 | O-ring | 1 | Rubber | |
5 | Valve seat | 1 | YG8 | |
6 | Fastening cap | 1 | 45 | |
7 | Valve core | 1 | YG8 | |
8 | Lower fluid guide bushing | 1 | 2Cr13 | |
9 | Upper fluid guide bushing | 1 | 2Cr13 | |
10 | Valve stem | 1 | 2Cr13 | |
11 | O-ring | 1 | Rubber | |
12 | O-ring | 2 | Rubber | |
13 | Valve Bonnet | 1 | 35CrMo | |
14 | Oil cylinder | 1 | 35CrMo | |
15 | Oil cylinder joint | 2 | 35CrMo | |
16 | O-ring | 2 | Rubber | |
17 | O-ring | 2 | Rubber | |
18 | O-ring | 2 | Rubber | |
19 | Piston | 1 | 45 | |
20 | Cylinder cover | 1 | 35CrMo | |
21 | Clip | 1 | 65Mn | |
22 | Screw | 4 | 35CrMo | |
23 | Washer | 1 | 35CrMo | |
24 | O-ring | 2 | Rubber | |
25 | Valve bonnet nut | 8 | 40Cr | |
26 | Packing Gland | 1 | 40Cr | |
27 | Valve bonnet bolt | 8 | 35CrMo | |
28 | Packing ring | 2 | 2Cr13 | |
29 | Packing | 5 | FKM |
![]() |

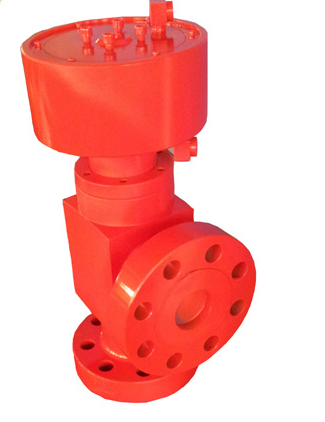

API Standard Forging Hydraulic Choke Valve JLKY80-35 Images |
