Single Shaft Api 7K 127mm Drilling Rig Drawworks

Brand Name : ATO

Model Number : JC50D

Certification : API 7K

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Supply Ability : 1 set / month

Delivery Time : 1-2 month

Packaging Details : Device prizing

Usage : drilling well

Type : Rotary Drilling Rig

Dia. of drilling line, mm(in) : 127 (5 )

Max. fastline pull, kN(kips) : 340

Brake disc size (DxW), mm(in) : 1600×76 (63 ×3 )

Main drum size (DxL), mm(in) : 685×1245 (27 ×49 )

Certificate : API 7K

Contact Now

JC50D/50B dc drilling drawworks/drilling drawworks wiht api 7K for oil drilling rig

Product Explanation:

Drawworks covers single shaft gear transmission, and three speed chain transmission.
Features of single shaft gear transmission:
This is main component of DB (VFD) series rigs;
Drawworks gear box with single shift stepless speed and two shifts stepless speed;
Single shift stepless speed gives hook speed 1.2 to 1.5 meters and two shifts stepless speed gives 1.2 to 1.7 meters

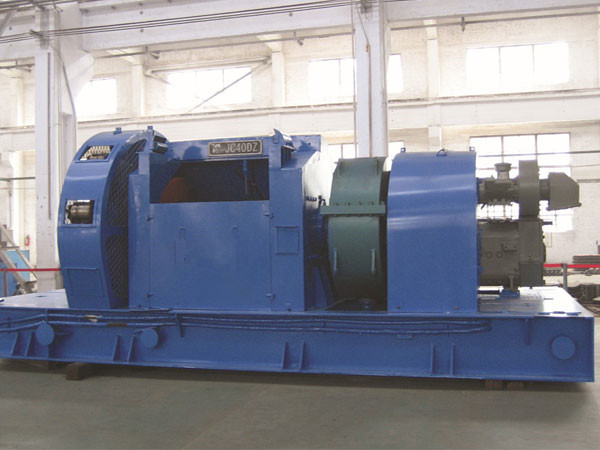

Three-shaft chain transmission:
This is the main component of DZ (SCR) series rig;
Drawworks consists of input, mid and drum shafts to form 4 forward and two reverse shifts (4+2R). max. hook speed is 1.2 to 1.7 meters per second.
Drawworks components design conforms to API Spec 7K.

Product Features:

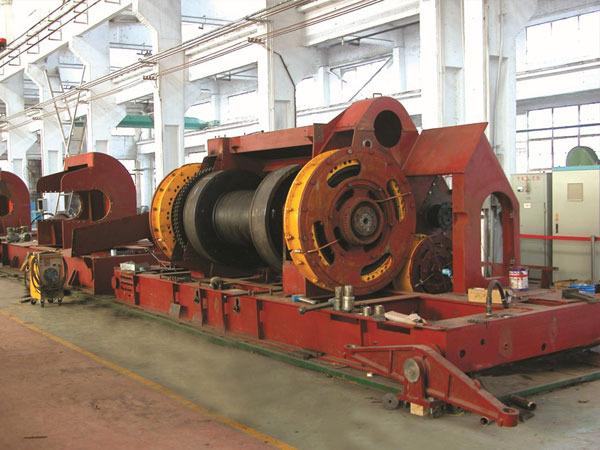

1. Mechanical drive drawworks (B Series drawworks)
Bearings adopt roller bearing totally, shaft materials adopt high-quality alloy steel.
Drawworks adopt roller chain roll transmission to realize forward gear and adopt gear transmission to realize reverse.
All the chains are forced lubrication.
The drum is grooved, and the high-speed and low-speed ends of the drum shaft are equipped with ventilated-type air tube clutches. The brake rim uses circulation water to force cool.
Band or disc brake is used in main brake. Auxiliary brake is furnished with Regenerating brake , electromagnetic eddy current brake or air congtroled disc brake.

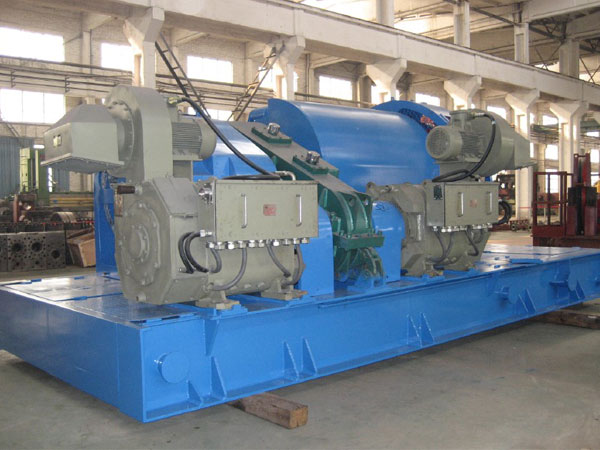

2. DC motor drive drawworks(D series)
Bearings adopt roller bearing totally, shaft materials adopt high-quality alloy steel.
The drawworks adopt wall type and fully enclosed structure, and adopt internal gear shift mode through roller chain drive.
All the chains are forced lubrication.
The drum is grooved, and the high-speed and low-speed ends of the drum shaft are equipped with ventilated-type air tube clutches. The brake rim is cooled by circulation water.
Main brake adopts with a disc brake or hydraulic brake, Auxiliary brake is furnished with regenerating brake, electromagnetic eddy current brake or pneumatic drive and water-cooled disk brake.

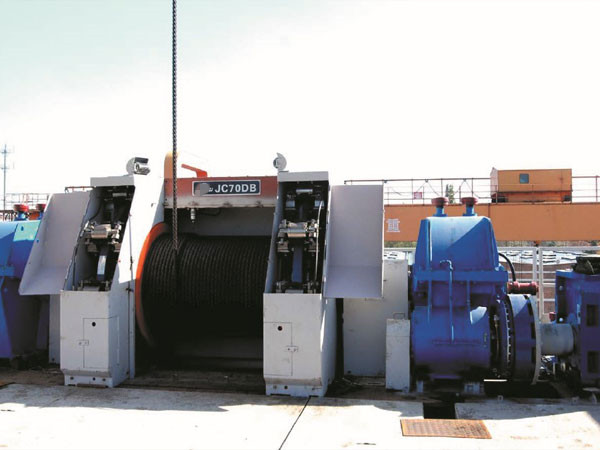

3. AC variable frequency electric driven drawworks (DB series drawworks)
Drawworks consists of AC variable-frequency motor, gear box, hydraulic disc brake, drawworks frame, drum shaft Assay and automatic-drilling system, etc; Gear transmission efficiency is high.
The drawworks is single grooved drum in structure. Compared with similar products, it features simple structure, small volume and light weight.
Drawworks is driven by AC variable-frequency motor to realize stepless speed regulation, thus have big power, wider range in speed regulation.
The drawworks adopt hydraulic disc brake and regenerating brake and adopt with independent motor automatic-drilling.
